Top-Running vs. Underhung Crane – Choosing the Right Crane for Your Needs

Understanding Top-Running and Underhung Cranes: Key Differences

Choosing the right overhead crane is vital for improving material handling efficiency, maintaining workplace safety, and boosting return on investment. Two popular types are top-running and underhung cranes. Each design has a unique purpose. They suit different building layouts, weight capacities, and work demands. Knowing their structural differences and main advantages helps companies find the best match for their operational needs.

What Is a Top-Running Crane?

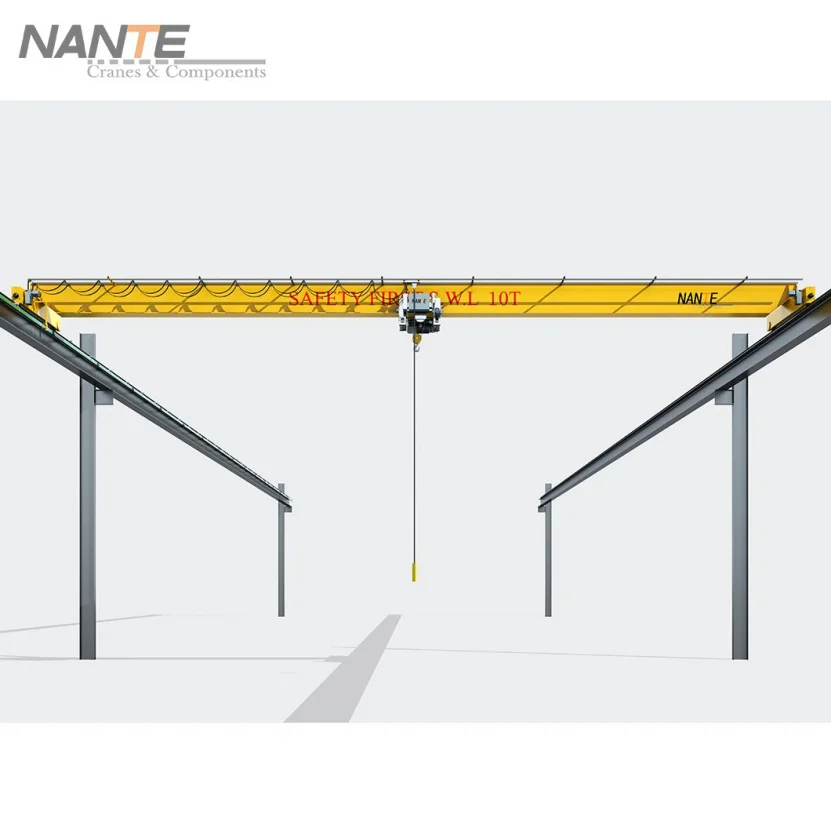

A top-running crane is an overhead lifting setup. Its bridge moves along raised runway beams. These beams are held up by the building’s frame or standalone columns. This setup supports a high lifting capacity. It’s often seen in big industrial settings. The crane bridge can be a single-girder or double-girder system. Single-girder top-running cranes offer a budget-friendly option for lighter loads, usually up to 20 tons. Double-girder versions handle heavier tasks, often over 500 tons. These cranes are common in tough industries like steel making, ship construction, and large building projects. Here, strength and high load capacity matter most.

What Is an Underhung Crane?

An underhung crane, also called an under-running crane, suspends its trolley and hoist from rails fixed to the ceiling. Unlike top-running cranes, it doesn’t need column or runway beam support. It uses the existing ceiling structure instead. This makes it perfect for places with limited space. Underhung cranes come in freestanding or monorail styles. Freestanding versions allow flexible setups without changing the building. Monorail systems move loads in a straight line, often for assembly lines or logistics tasks. These cranes shine in light-to-medium jobs where saving floor space and precise load placement are top goals.

Top-Running Cranes: Strengths, Types, and Uses

Types of Top-Running Cranes

Top-running cranes split into single-girder and double-girder types. Single-girder top-running cranes are affordable for jobs needing moderate lifting, up to 20 tons. They use one bridge beam, cutting weight and setup costs. Double-girder top-running cranes provide greater lifting power, often beyond 500 tons. These are made for harsh settings like steel mills, heavy equipment plants, and shipyards. High-load needs and nonstop use are common there.

Key Advantages of Top-Running Cranes

One major perk of top-running cranes is their ability to handle very heavy loads while staying sturdy. Mounted on raised beams, they avoid stressing the building’s roof directly. This allows for heavier, steady use. They also offer wide span options. This suits large spaces needing long-distance material movement. Their solid build makes them fit for industries with frequent, intense lifting.

When to Choose a Top-Running Crane

A top-running crane works best for companies needing regular heavy lifting. Facilities with high-output tasks, like multi-shift factories or outdoor industrial zones, gain a lot from their strength. Plus, businesses planning long-term growth may prefer them. They can handle future load increases with little structural change.

Underhung Cranes: Benefits, Types, and Use Cases

Types of Underhung Cranes

Underhung cranes are available in modular and patented track designs. Modular underhung systems provide customizable layouts, allowing businesses to adapt their crane configurations as operational needs evolve. These systems are often preferred in environments where workflow adjustments are frequent. Patented track designs, such as enclosed track or open rail systems, improve load stability and reduce operational friction, enhancing efficiency and prolonging crane lifespan.

Unique Advantages of Underhung Cranes

Underhung cranes excel in spaces with tight overhead room. Attached to ceiling rails, they skip floor supports. This frees up floor space for work areas and storage. Their energy-saving design, with less friction and light parts, uses less power than heavier top-running systems. These traits make them great for tasks needing precise lifting and smooth workflow blending.

When to Prioritize an Underhung Crane

Underhung cranes suit facilities with low ceilings or tight spaces needing easy movement. They’re ideal for fields like aerospace, electronics assembly, and logistics, where exact load placement matters. Companies aiming to cut building costs while maximizing space also benefit from them.

Top-Running vs. Underhung Cranes: Direct Comparison

Load Capacity and Operational Scope

Top-running cranes lead in load capacity, lifting from 5 to over 500 tons. Underhung cranes focus on lighter loads, usually 0.5 to 15 tons. For heavy industrial jobs, top-running cranes win. Underhung cranes shine in precise handling of smaller weights.

Facility Layout and Space Optimization

Underhung cranes help where floor space is key. Their ceiling-mounted design skips columns, perfect for expanding work zones. Top-running cranes need runway beams and reinforcements. This can limit use in spaces with height constraints.

Installation Complexity and Long-Term Costs

Underhung cranes often need fewer building changes, lowering setup costs. Top-running cranes demand more construction work. Yet, they offer lasting strength and reliability. This makes them a smart pick for heavy-duty fields.

Safety and Precision

For jobs needing high accuracy, underhung cranes give better load control with less sway. This helps industries handling fragile items, like aerospace or electronics. Top-running cranes, though strong, may sway more. They might need extra stabilizing tools.

How to Choose: Matching Crane Type to Your Facility’s Needs

Evaluating Physical Constraints

Checking ceiling height, floor space, and structural strength is crucial when picking between top-running and underhung cranes. Low-clearance spaces favor underhung models. Places with crane-ready supports suit top-running ones.

Aligning with Workflow Demands

Firms should weigh load frequency, weight range, and automation fit. Heavy, nonstop lifting calls for top-running crane power. Flexible, light handling fits underhung cranes better.

Budget and ROI Analysis

Underhung cranes cost less upfront due to minimal building tweaks. Top-running cranes, though, yield long-term gains. They handle bigger loads and last longer in busy settings.

Innovative Trends in Crane Technology

Smart Automation for Both Crane Types

New tech boosts both crane types. IoT sensors in underhung systems predict maintenance needs. AI load tools in top-running cranes cut downtime and costs, lifting efficiency.

Eco-Friendly Upgrades

Green focus grows in crane design. Regenerative braking in underhung cranes reuses energy, boosting efficiency. Lightweight alloys in top-running cranes trim power use and eco-impact.

Nante Crane Underhung Crane Customization Service

Nante Crane, a top Chinese crane manufacturer, offers custom underhung crane solutions. Tailored for unique needs, our customization includes load capacities, rail setups, and smart controls. This ensures smooth workflow fit.
