A Guide to Common Wire Rope Hoist Faults and Their Solutions

Overview of the article

-Importance of Maintenance of Wire Rope Hoist: A hoist should be kept in good condition, so that the working will be safe and productive.

-Understand the Components:To understand the functions of the important components comprising wire ropes, drums, motors, and gearboxes.

-Common Problems with Wire Rope Hoists:Common problems include hoist non-operation, motor overheating, abnormal noises, and control issues.

-Steps for Wire Rope Hoist Troubleshooting:Step-by-step action to be taken for each class of faults.

-Preventive Maintenance of Wire Rope Hoists:State major maintenance that will be required including regular inspections, lubrication, and load testing.

-Tips for Wire Rope Hoist Repair:Refer to manuals, use OEM parts, perform thorough testing after.

-Wire Rope Hoist Professional Services:Emphasize the advantages of consulting experts for those problems that are complicated to handle.

Introduction

A well-maintained wire rope hoist is very important in safety and productivity wherever it may be in use. However, knowing likely faults and how to overcome them is very vital as far as their operation is concerned. The guide provides users with the ability to identify, troubleshoot, and solve some common problems of wire rope hoist with the assurance of a safer and productive working environment.

Wire Rope Hoist Component Understanding

Wire rope hoists are complex assemblies because many individual components work together to lift and move massive loads. Knowing these wire rope hoists components  will allow a much more effective troubleshooting and maintenance.

-Wire Rope: The central part is made out with the assembling and twisting of numerous strands of metal wires to attain some flexibility, including strength. On account of an inappropriate application of it may cause damage thus asking for discarding. Hence observance of Safety principles/Inspection highly is needed. The wire ropes utilized in the Hoists &overhead cranes are manufactured specifically from additional versatile Improved Plow steel, which will be pretty resilient in tensile strength.

-Drum: A cylindrical part around which the wire rope wraps, rotating to wind or unwind the rope for lifting or lowering loads.

-Motor: Powers the hoist, driving the drum to move the wire rope. Nante’s NHA series hoists feature a top-quality gear motor with IP55, F class, and an electromagnetic brake.

-Gearbox: Reduces the motor’s speed, providing torque for lifting.

-Rope Guide: Ensures even winding of the wire rope on the drum, preventing tangling and wear. Misalignment of the wire rope can damage or break the rope guide, leading to operational failure and safety risks. Modern designs often incorporate a double pressure roller assembly for smoother tracking into the drum groove.

-Hook Block: Attached to the wire rope, it holds the load and often includes safety latches. Nante’s NHA series uses high-strength T class alloy steel forced hooks with 360° rotation.

-Control System: Allows the operator to control the hoist’s movements, often through pendant controls, wireless remotes, or cabin controls. The control system can experience malfunctions or failures, causing downtime.

-Limit Switches: Prevent the hook block from over-traveling, protecting the hoist and load. Limit switches can malfunction, leading to overtravel or failure to stop at the desired positions.

-Brake System: Holds the load stationary when lifting power is not applied, critical for safety. If the hoist load brake drags or slips, inspect it for dirt, corrosion, or damage.

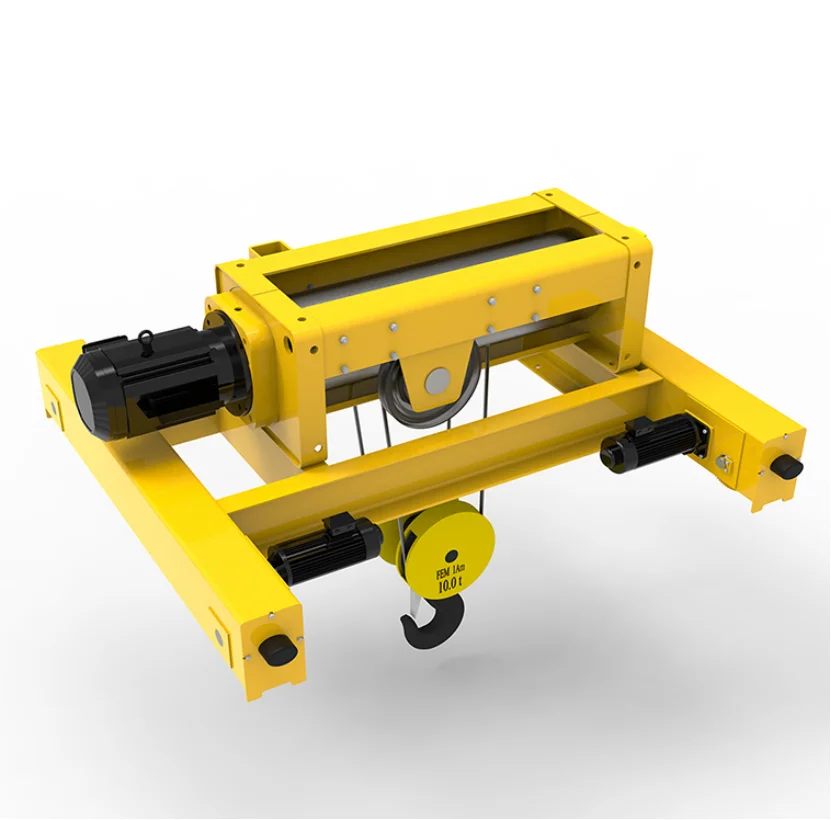

Shaoxing Nante Crane Equipment Co., Ltd. manufactures cranes and crane components, including the NHA Series Wire Rope Hoist and the new released NHA-EX Low Headroom Explosion-Proof Hoist. The NHA series Wire rope hoist features a compact design, low noise output, and low power consumption for ease of use. It is available in several configurations, including low headroom, fixed type, monorail type, and double girder designs, catering to various applications.

The NHA-EX Low Headroom Explosion-Proof Hoist, manufactured by Shaoxing Nante Crane Equipment Co., Ltd., is designed for use in explosive gas environments of grades IIA, IIB, IIC, T1 to T4, Zone 1 and Zone 2, and conductive dust environments. Available in 2-10 tons, it features a low headroom design, double-speed control, energy savings, and multiple safety features. It’s ideal for factories, workshops, and warehouses, with a 12-month warranty and OEM services.

Common Wire Rope Hoist Faults

-Hoist Not Operating: This can be due to a disconnected power supply, malfunctioning motor or control system, a tripped overload protection device, or a burnt fuse. It’s important to check the emergency stop button as well.

-Motor Overheating: Overheating might result from overloading, insufficient ventilation, exceeding duty cycle limits, or electrical problems in the motor windings. Overheating can be detected by a temperature sensor, which will stop the hoist operation. To prevent this, avoid unnecessary repeated short-time starts.

-Unusual Noises: Grinding, screeching, or clicking sounds can indicate worn gears, damaged bearings, loose parts, or issues with the wire rope or drum. Incorrect operation can cause intense collisions between the electric crane or hoist and the trolley stop, leading to damage and noise. High noise and vibration during hoisting may indicate a power supply problem. High noise or intense vibration during moving operations might signal that the trolley’s installation on the rails is incorrect.

-Chain Jamming or Slipping: Jamming might be due to misalignment, foreign objects, or damage. Slipping can indicate worn sprockets or a stretched chain.

-Load Drift/Creep: This points to a brake system problem, a worn clutch, or hydraulic leakage in the lifting mechanism.

-Control Issues: Unresponsive or erratic controls can be caused by damaged control components, wiring problems, or a faulty control board.

Wire Rope Hoist Troubleshooting Steps

-Hoist Not Operating:

-Check power supply and circuit breakers.

-Inspect the control system, including buttons, levers, and wiring.

-Examine the motor for signs of damage or overheating.

-Test the overload protection device and reset if tripped.

-Release the emergency stop button if engaged.

-Check the fuse and replace it if burnt.

-Ensure that the hoist is not in its limit position.

-Ensure that the start button is pressed.

-Motor Overheating:

-Verify the load weight is within the hoist’s capacity.

-Check for proper ventilation around the motor.

-Allow the motor to cool before further use.

-Inspect motor windings for damage or signs of electrical issues.

-Unusual Noises:

-Inspect the wire rope for wear, kinking, or damage.

-Examine the drum for grooves, wear, or debris.

-Check gears and bearings for wear, looseness, or damage.

-Lubricate moving parts as recommended by the manufacturer.

-Check the trolley’s installation on the rails if there’s noise during a moving operation.

-Check the phase sequence of the power supply if the hoisting motor produces high noise intermittently and the hoist vibrates severely.

-Chain Jamming or Slipping:

-Inspect the chain path for obstructions or misalignment.

-Examine the chain for damage, wear, or stretching.

-Check the chain sprockets for wear and replace if necessary.

-Load Drift/Creep:

-Test the brake system for proper engagement and holding power.

-Inspect the clutch for wear or damage, adjusting or replacing it as needed.

-Check the hydraulic system (if applicable) for leaks.

-Control Issues:

-Inspect control components (buttons, levers, pendants) for damage.

-Check wiring for loose connections or damage.

-Examine the control board for signs of malfunction.

-Ensure the power supply phases are connected correctly.

Best Practices in Wire Rope Hoist Preventative Maintenance

Preventing wire rope hoist failures requires a solid preventative maintenance program. Key best practices include:

-Regular Inspections and Lubrication: Inspect wire ropes, hooks, and other components regularly. Lubricate moving parts like the wire rope, drum, and sheaves to reduce friction and wear. This should be done according to the manufacturer’s recommendations. Nante’s hoist manual specifies lubrication requirements and intervals.

-Load Testing: Conduct load tests annually or as per regulations to verify the hoist’s capacity. The overload protection device should be tested by gradually increasing the load to more than 110% of the maximum load. Overload testing should not be performed repeatedly, as it puts a strain on the system.

-Cleaning: Regularly clean the hoist and its components to remove dirt, debris, and corrosive substances.

-Following Manufacturer Guidelines: Adhering to the manufacturer’s instructions for operation, maintenance, and inspection is crucial for performance and safety.

General Repair Tips for Wire Rope Hoist

-Refer to the Manufacturer’s Manual: It contains specific information about the hoist’s components, operation, and troubleshooting.

-Use OEM Parts: Compatibility and quality will be assured if the replaced parts are by OEM.

-Conduct Thorough Testing: After any type of repair, test the hoist thoroughly without a load, then with a light load to verify proper function.

When to Seek Professional Help for Wire Rope Hoist Repair

While some wire rope hoist repairs are manageable in-house, complex problems often benefit from professional technicians. Advantages include:

-Expert Diagnosis: Professionals possess the knowledge and experience to diagnose complex problems accurately.

-Certified Repairs: Certified technicians ensure repairs meet industry standards and safety regulations.

-Preventative Maintenance Plans: Many service providers have plans available to help keep your hoist in top working condition.

-Warranty Protection: Professional repairs may be covered under warranty, saving you money.

Conclusion of Wire Rope Hoist Faults and Their Solutions

Proper wire rope hoist maintenance is the bedrock of a safe and productive workplace. Besides knowing when to seek professional help, common faults and their prevention will reduce downtime, prevent accidents, and prolong the life of the equipment. A well-maintained wire rope hoist assures efficiency, safety, and generally success in operation.

Disclaimer: This article is a general guide only. It is always good practice to follow the manufacturer’s guidelines and advice from certified professionals for any specific troubleshooting and maintenance instructions. For Nante Crane customers, it is always suggested to consult product manuals for use or directly call our service personnel for support.
