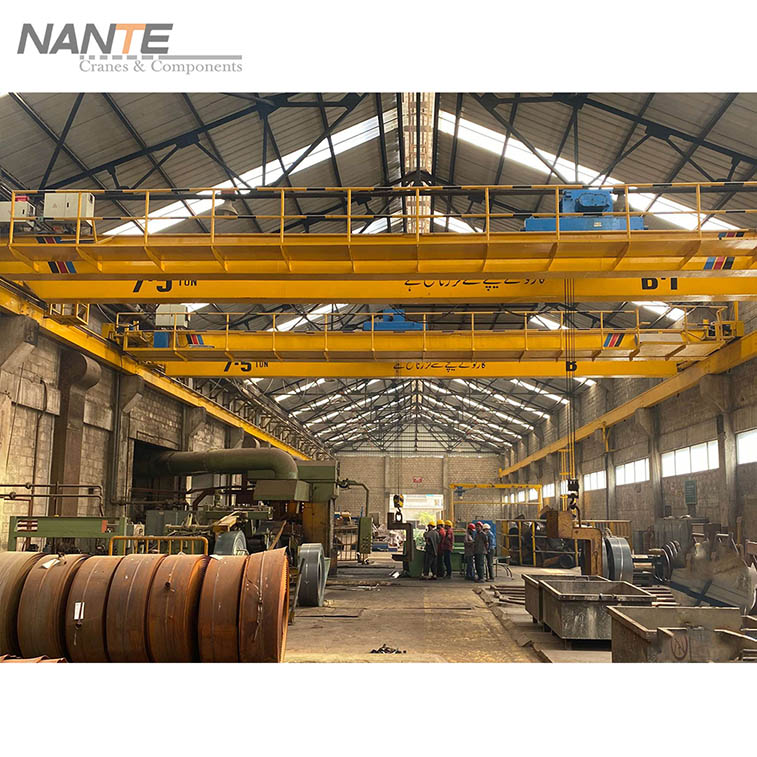

Double Girder EOT Crane with Hoist
Product Description
Double Girder Overhead crane with Hoist is a common type overhead crane. This type overhead crane is an ideal solution for ≤ 50ton capacity and indoor usage. NANTE can provide from M4 to M6 classification to meet customer’s different duty group and budget. Nante’s double girder overhead crane has the features of compact design, light self-weight, smooth running, easy for installation and maintenance, low energy consumption, etc..
Features
| 1） | Follows the international design code, like FEM, CMAA, EN ISO, GB. |
| 2） | Equip with NHA-D European standard electric hoist which can be double speed or Inverter control for lifting. |
| 3） | The girder is equipped with walkway and handrail, which is compact, low self-weight, and welded by S355 material, the welding specification follows ISO 15614, AWS D14.1, deflection can from 1/700 ~ 1/1000, MT or PT is requested for Fillet welding and UT is requested for joint welding. |
| 4） | The wheel is made by forged steel with proper heat treatment. User hollow shaft design end carriage for small capacity crane and bogie design for big capacity cranes which is high transmission efficiency, short wheel base and smooth running. |
| 5） | Branding gear motor with IP55, F insulation class, IE3 Energy efficiency, over-heat protection, manual release bar, and electro-magnetic brake feature. The motor is controlled by inverter for smooth running. |
| 6） | The control panel design follow IEC standard, and it is installed inside IP55 enclosure with socket for easy Installation. |
| 7） | Double line Galvanized C track festoon system with flat cable, one line for hoist power and signal transmission, one line for the pendent control trolley movement. |
| 8） | SA2.5 Surface pre-treated by blasting according to ISO8501-1; C3-C5 painting system according to ISO 12944-5 |
Technical Parameter
| Lifting Capacity | Lifting height | Span | Cross Travel Speed | Long travel Speed | Control Method |
| 5t-63t | 3m-30m | 5m-40m | 20m/min | 20-50 m/min | Pendent+ Remote Control |
